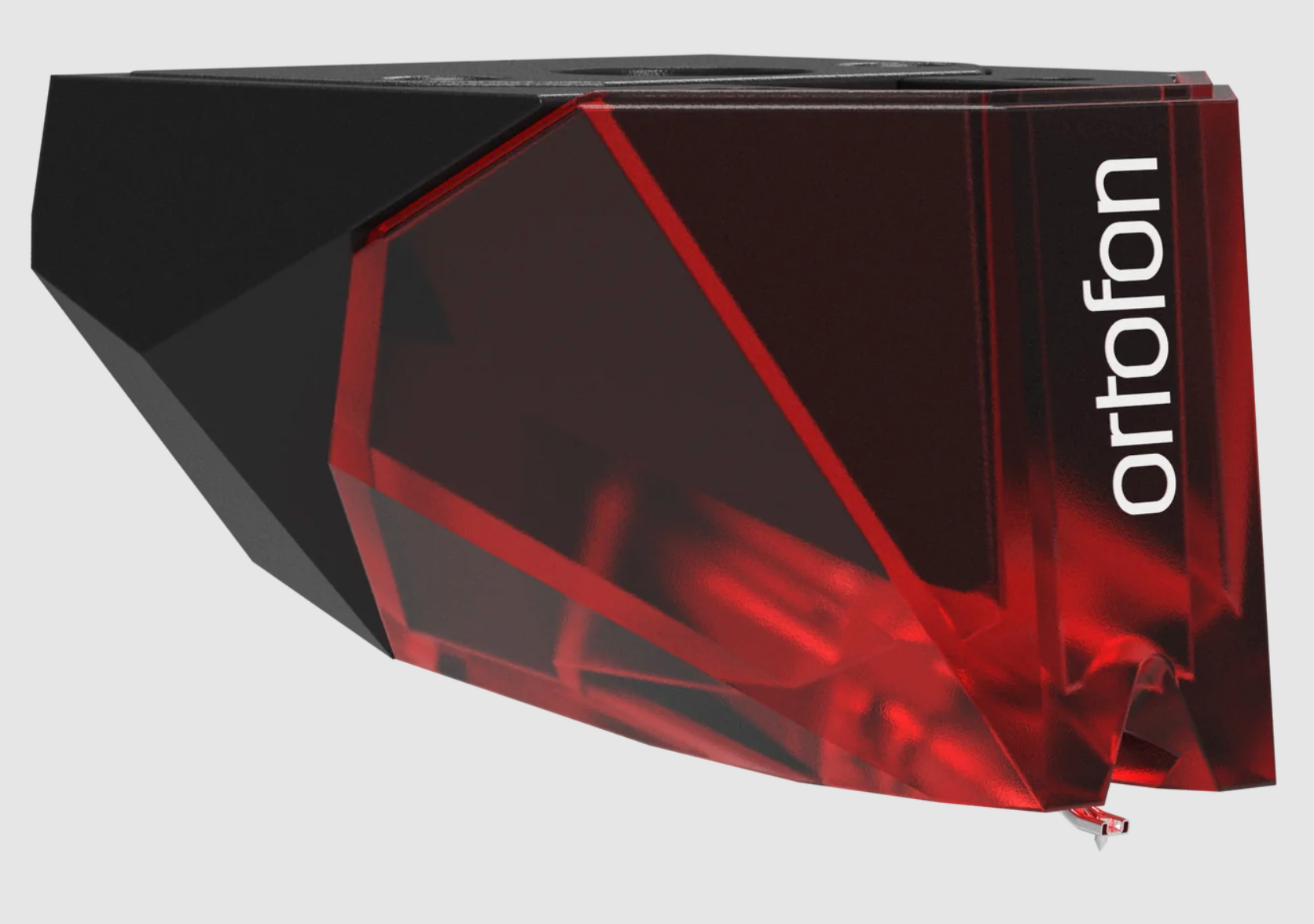

  • Ortofon 2MR red. Image of left side

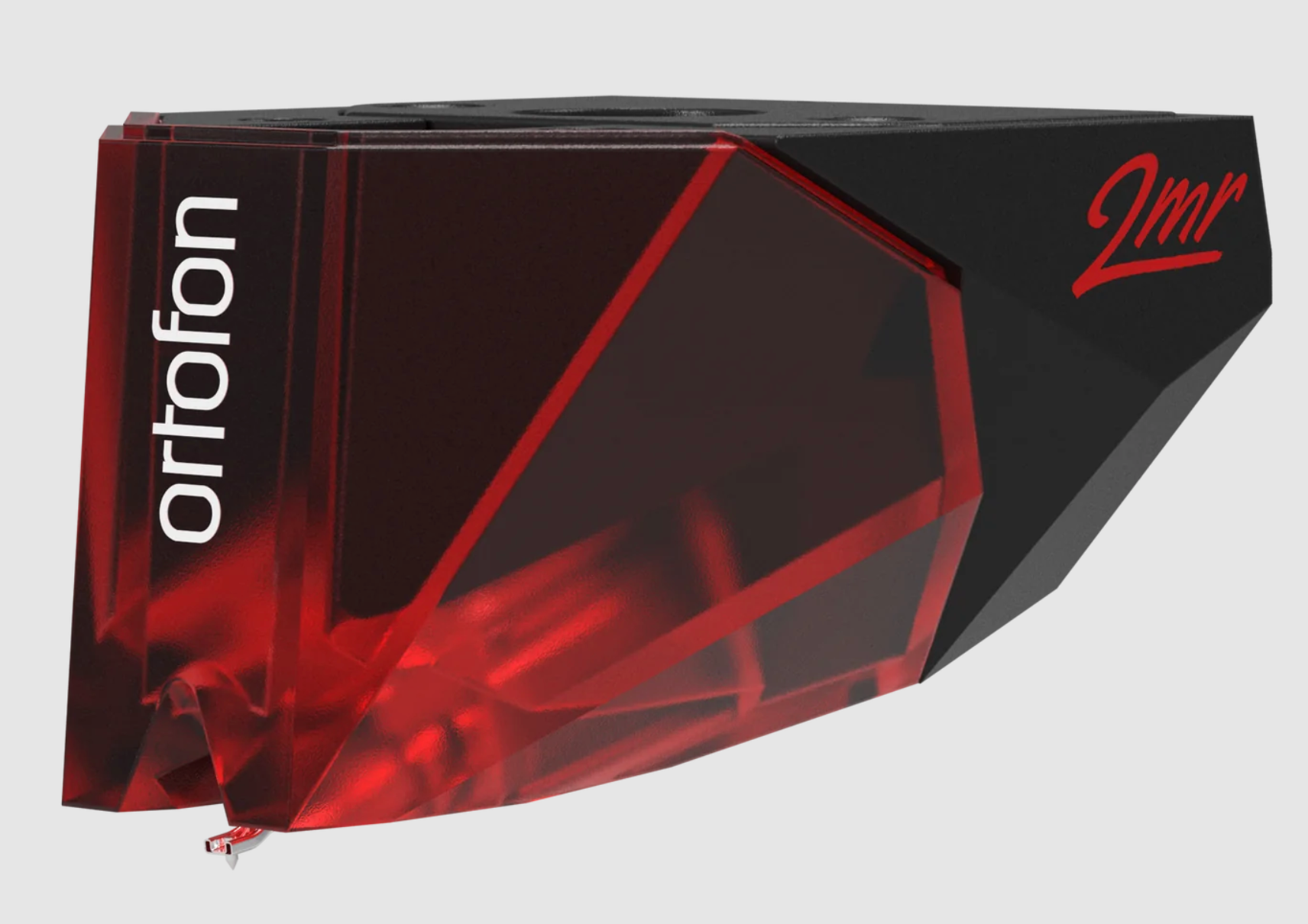

  • Ortofon 2MR red. Image of right side

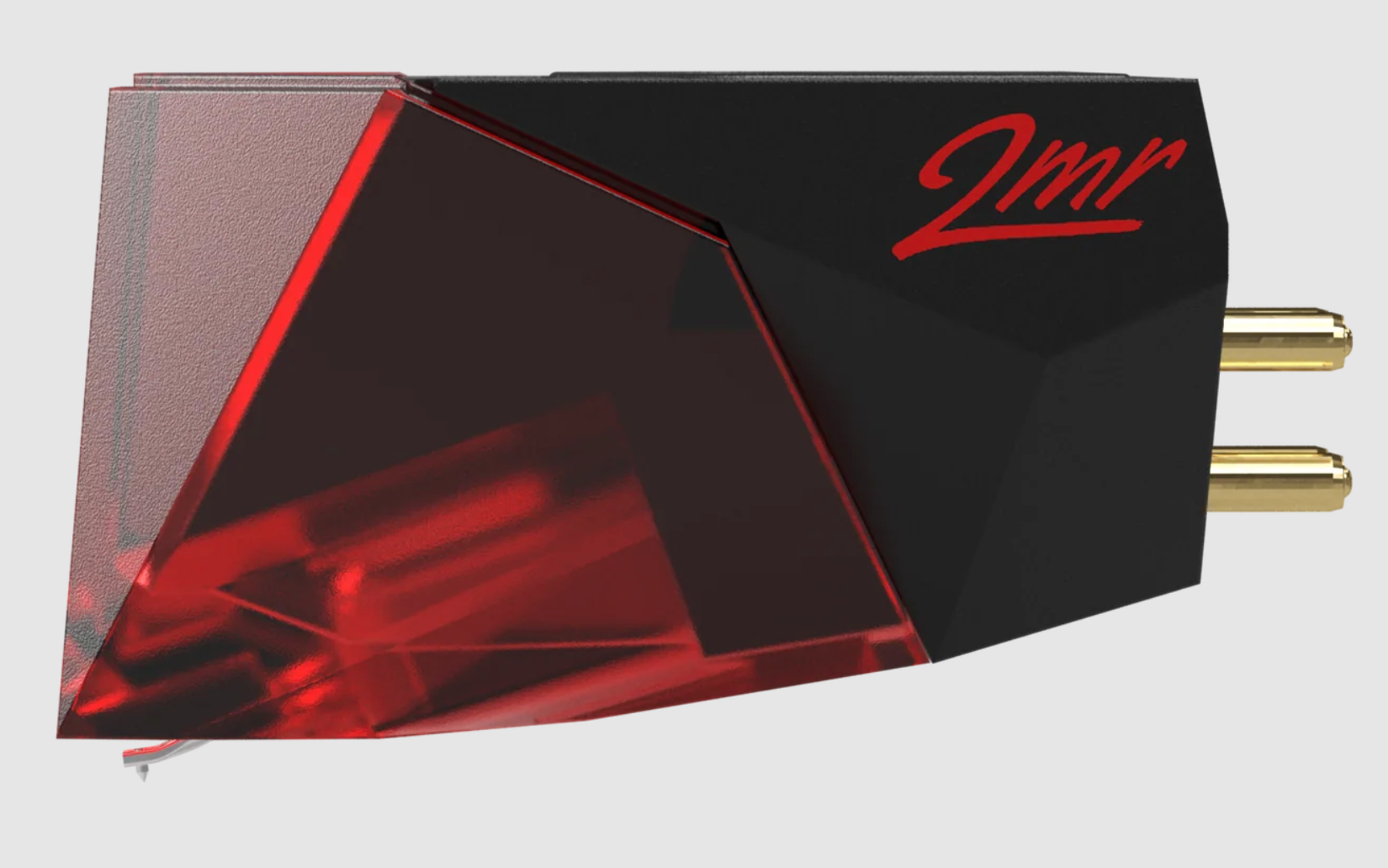

  • Ortofon 2MR red. Image of screws
1 4

Ortofon 2MR Red (suits Rega turntables) Cartridge

Ortofon 2MR Red (suits Rega turntables) Cartridge

$143.00 AUD
$159.00 AUD $143.00 AUD
Sale Call For Availability
Tax included. Shipping calculated at checkout.
  • AFTER PAY
  • ZIP PAY
  • LAY BUY
  • 755 NICHOLSON ST CARLTON NORTH
  • Full Aussie Manufact. Warranty
  • Free Shipping over $500

Introducing the 2MR red

For an optimised fit on low-profile turntables & perfectly suited to Rega turntables

The Ortofon 2MR series is designed with a newly developed cartridge housing for optimised fitting on low-profile turntables. With its ultra-slim 3mm height reduction, seamless integration is guaranteed. The cartridge's slimline body eliminates the need for spacers or modifications, ensuring quick, easy mounting with just two screws.

Experience unmatched compatibility with all 2M styli and revel in the high-performance motor system featuring quad coils and split pole pins, exclusive to genuine Ortofon cartridges.

Accuracy level

With the 2MR Red you will hear the music come to life on its own terms. It is like taking a step into the music itself. Whilst its Ortofon's entry-level cartridge in the series, it certainly packs a punch and what an entry it makes!

The  2MR Red delivers an open, dynamic sound with a slight touch of warmth

Compatibility

The Ortofon 2MR Red features a specially designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.

With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws

Product Features

Newly developed low form factor cartridge housing within the famous 2M series:

  • Slimline cartridge body - Effectively eliminates the need for tonearm spacers, shims or modifications
  • 100% compatibility with the 2M styli - All Ortofon 2M styli fits on all 2MR cartridge models
  • Standard half inch mounting - Quick and easy mounting on the tonearms with just two screws
  • A complete series ranging from Mono to Premium: 2MR Red to High-end: 2MR Black LVB 250

2MR Red:

  • Elliptical diamond on an aluminium cantilever with a Premium Ortofon rubber damper
  • Quad coil motor system with four copper coils and four split pole pins
  • With the 2MR Red it is like taking a step into music itself

Technical Specifications

  • Output voltage at 1000 Hz, 5cm/sec. - 5.5 mV
  • Channel balance at 1 kHz - 1.5 dB
  • Channel separation at 1 kHz - 22 dB
  • Channel separation at 15 kHz - 15 dB
  • Frequency response - 20-20.000 Hz + 3 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force - 70 µm
  • Compliance, dynamic, lateral - 20 µm/mN
  • Stylus type - Elliptical
  • Stylus tip radius - r/R 8/18 µm
  • Tracking force range - 1.6-2.0 g (16-20 mN)
  • Tracking force, recommended - 1.8 g (18 mN)
  • Tracking angle - 20°
  • Internal impedance, DC resistance - 1.3 kOhm
  • Internal inductance - 700 mH
  • Recommended load resistance - 47 kOhm
  • Recommended load capacitance - 150-300 pF
  • Cartridge colour, body/stylus - Black/Red
  • 2MR cartridge weight - 6 g
  • 2M and 2M Verso cartridges weight - 7.2 g
  • 2M Pre-mounted cartridge weight - 16.7 g

*Reprint from manufacturers website.
