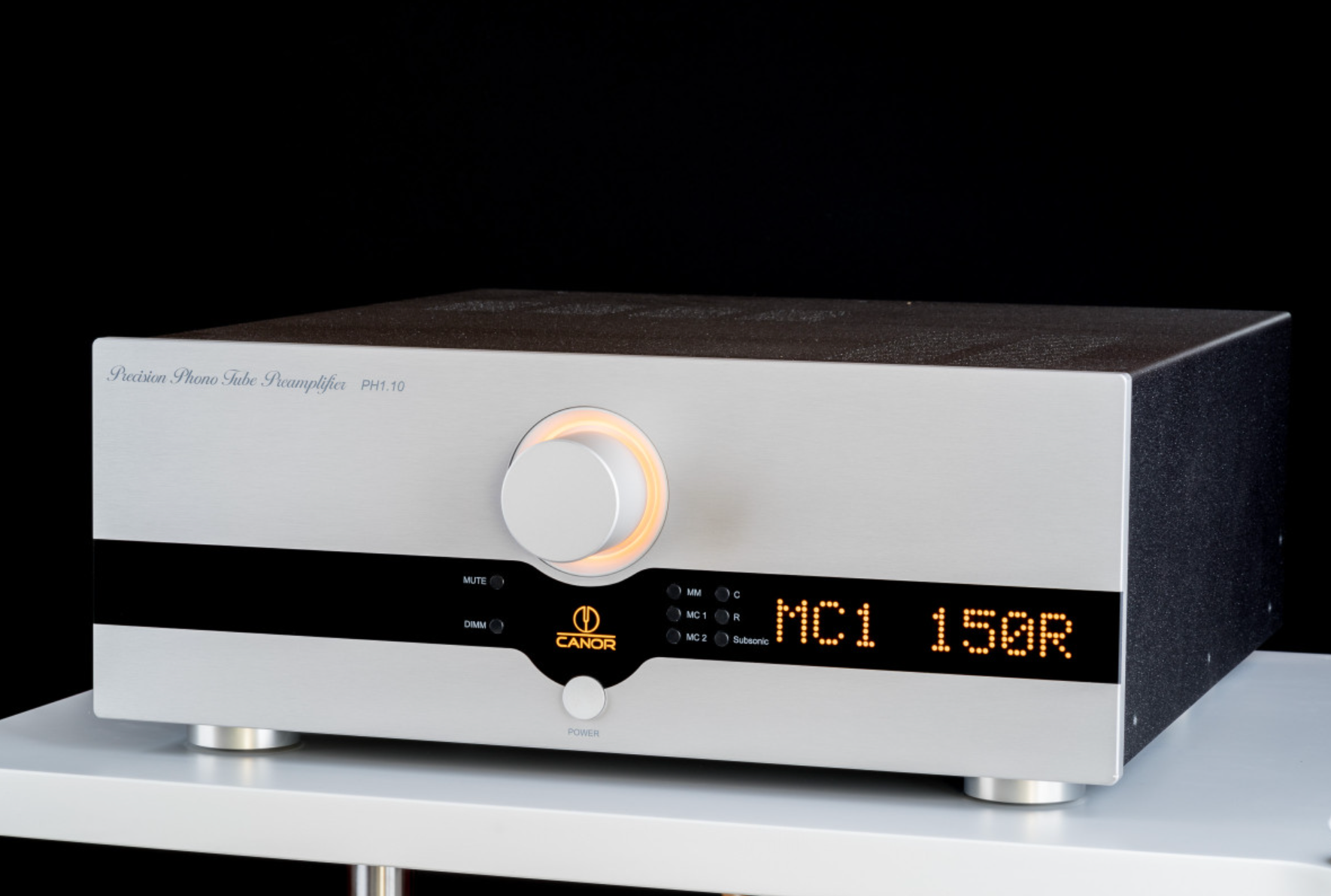

Canor PH 1.10 Tube Phono Preamplifier in Silver, angled image

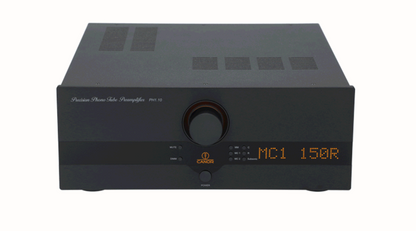

Canor PH 1.10 Tube Phono Preamplifier in black, front image

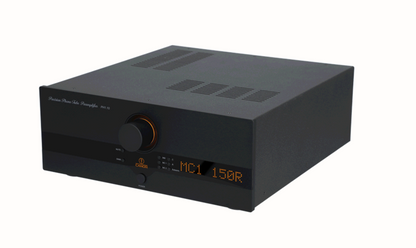

Canor PH 1.10 Tube Phono Preamplifier in black, angled image

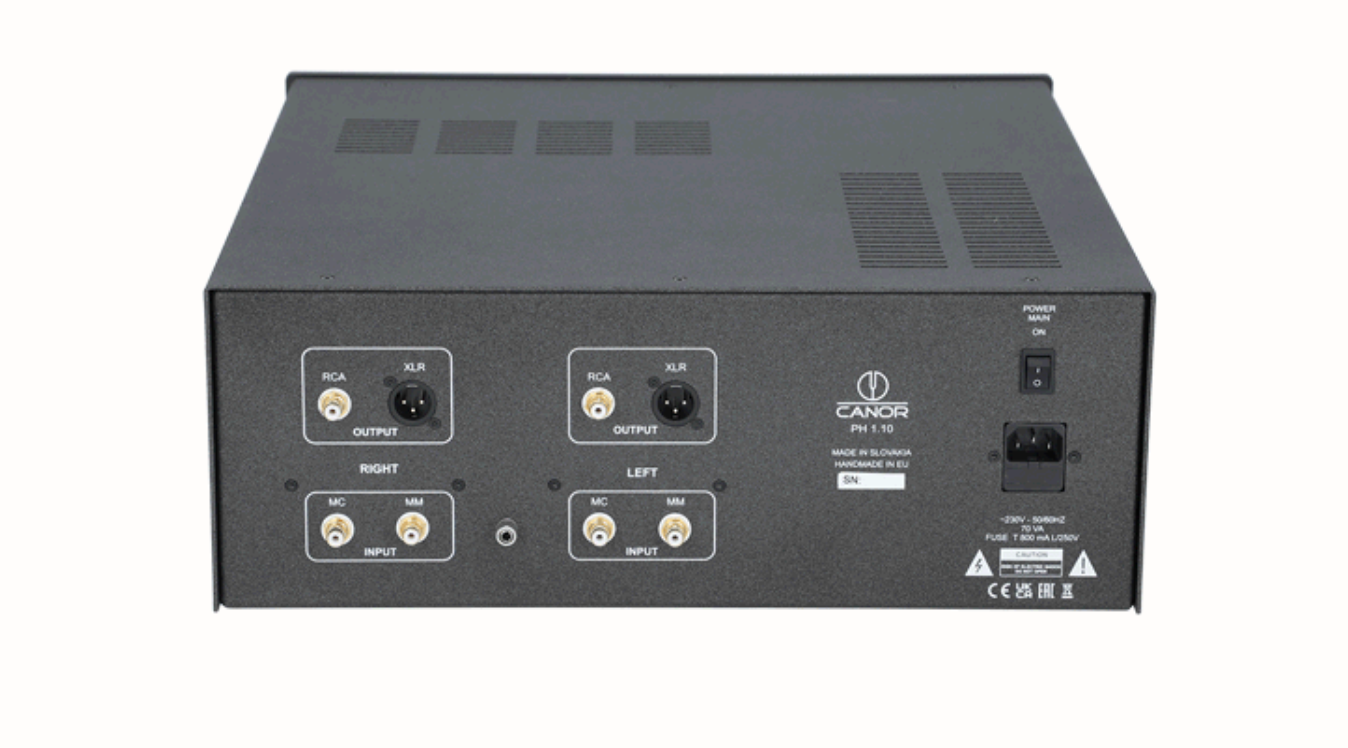

Canor PH 1.10 Tube Phono Preamplifier in black, back of unit

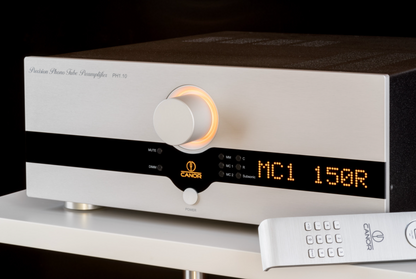

Canor PH 1.10 Tube Phono Preamplifier in silver with remote

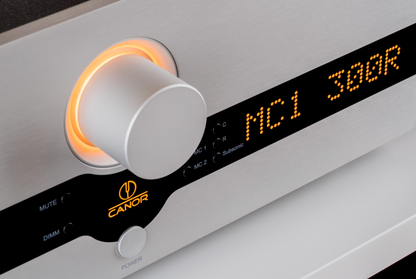

Canor PH 1.10 Tube Phono Preamplifier insilver, closeup

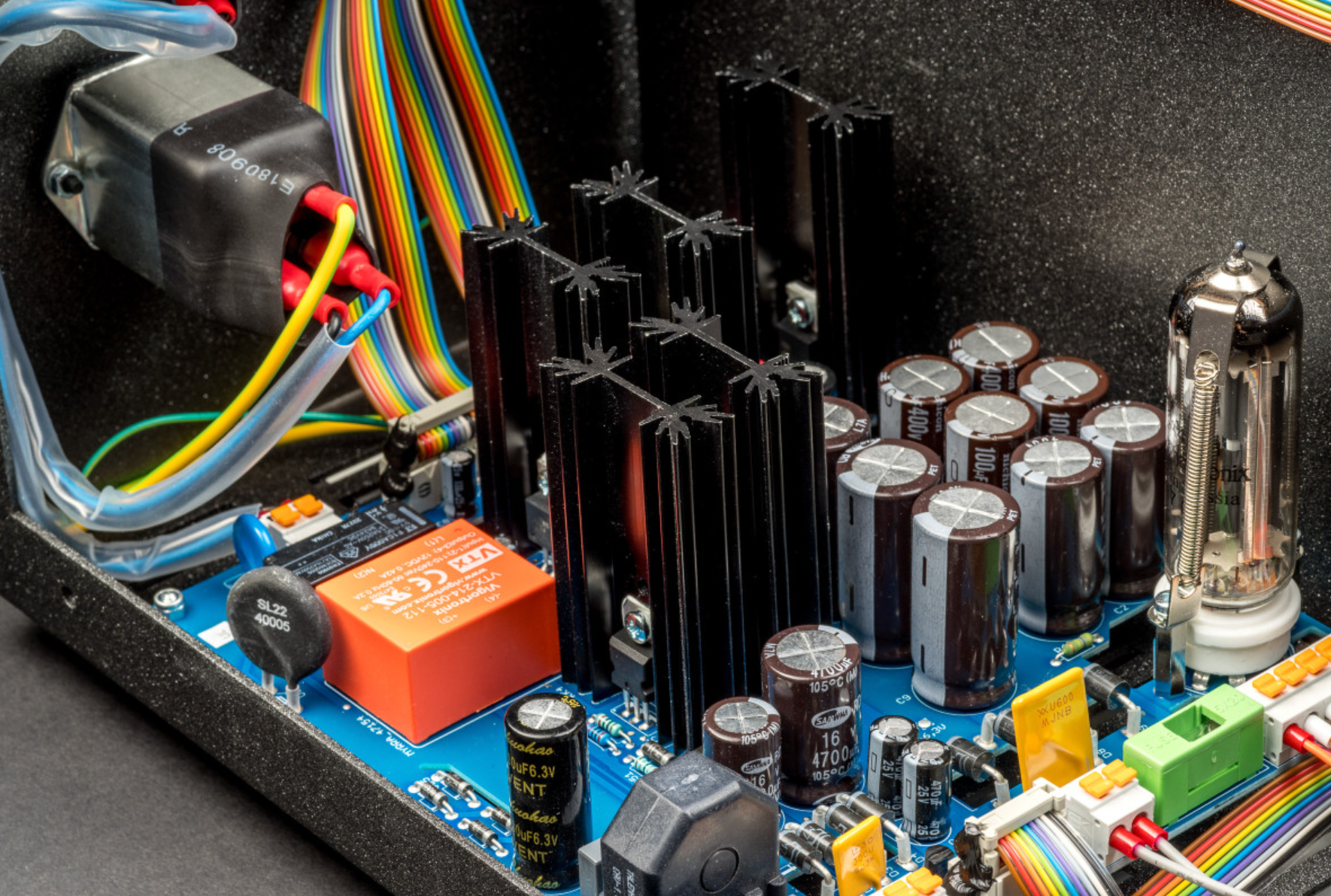

Canor PH 1.10 Tube Phono Preamplifier inside
Canor
Canor

Canor PH 1.10 Vacuum Tube Phono Preamplifier

$10,995.00 AUD
Colour
Colour: Silver
Vinyl Revival Upgrades & Accessories Vinyl Revival Slip Mat

"WE ASSURE YOU THAT ALL OUR PRODUCTS ARE 100% GENUINE AND COME WITH A FULL AUSTRALIAN WARRANTY."

Introducing the stunning PH 1.10 from Canor

The all-tube turntable preamp for both MM & MC phono cartridges

Highlights

  1. True balanced XLR output. The circuitry of PH 1.10 is a true differential
  2. An all-tube turntable preamplifier for both MM and MC phono cartridge
  3. Absolute selection and tubes matching with above-average parameters

For both MM and MC

Canor PH 1.10 phono preamplifier was designed for both MM and MC cartridges (they can be connected at the same time without any interference). The front panel’s buttons provide easy selection and set-up of the MM and MC.

CMT ™ technology

The use of CMT ™ technology (CANOR ® PCB Milling Technology) was a matter of course in the design of Canor PH 1.10 printed circuit boards.
Because very small signal amplitudes are processed in the turntable preamplifier, this technology has been even more beneficial than in our other products.

Product features

  • an all-tube turntable preamplifier for both MM and MC phono cartridges
  • nine tubes, one vacuum tube out of them used to rectify anode voltage
  • wiring circuitry without any global feedback
  • PCB’s utilise our premium CMT ™ technology
  • absolute selection and tubes matching with above-average parameters
  • vacuum-impregnated transformer core
  • transformer potted in a special anti-vibration compound
  • Canor only use high-quality polypropylene capacitors in the signal path
  • if a turntable is fitted with two tonearms, one having MM phono cartridge installed and the other MC, both can be connected simultaneously without mutually affecting each other
  • high variability of gain settings, resistances and capacitances settings for all types of phono cartridges
  • a high-quality step-up Lundahl transformer for MC phono cartridges

Technical Specifications

Load capacity MM / Gain
50, 150, 270, 370, 520, 620, 740, 840 pF / Gain: 46 dB

Input impedance MC1 / Gain
10, 20, 40, 80, 150, 300, 600, 1.200 Ω / Gain: 70 dB

Input impedance MC2 / Gain
2, 5, 10, 20, 40, 80, 150, 300 Ω / Gain: 76 dB

Output impedance
< 250 Ω

Inputs
RCA -> MM / RCA -> MC

Outputs
RCA / XLR

Total Harmonic Distortion
MM / MC <0,1% / 1 VRMS

Subsonic filter
18 dB / Octave

RIAA accuracy
0.3 dB / 20 Hz – 20 kHz

Signal-to-noise ratio MM
< 72 dBV (87 dBV - IEC - A)

Signal-to-noise ratio MC
< 72 dBV (87 dBV - IEC - A)

Tube Complement
8 x 6922EH
1 x 6CA4EH

Power
230 V / 50 Hz / 70 VA

Dimensions (w x h x d)
435 x 170 x 485 mm

Weight (net)
17 kg



*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.
