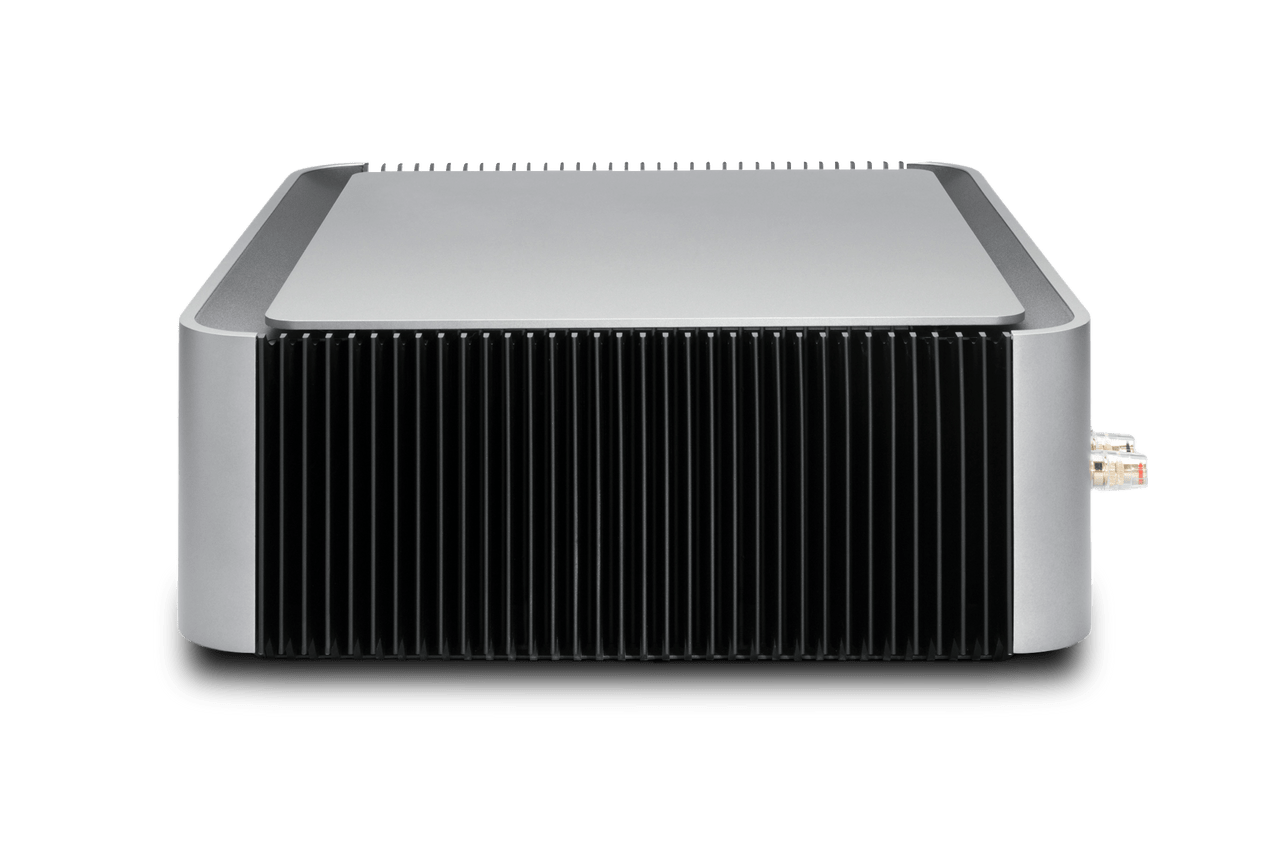

Cambridge Audio Edge W Power Amplifier
"WE ASSURE YOU THAT ALL OUR PRODUCTS ARE 100% GENUINE AND COME WITH A FULL AUSTRALIAN WARRANTY."
The Edge W Power Amplifier
The Best Power-Amplifier Cambridge Audio Have Ever Made
Edge W is made to be played loud. When you do turn it up, expect nothing but a dynamic and punchy sound that captures all the musicality of your songs. With just 14 hand-picked components, Edge W has one of the cleanest signal paths available.
It delivers our breath-taking, unadulterated British sound – nothing added, nothing taken away.
Powerfully Subtle
For all its power, Edge W is remarkably detailed. The sound is finely balanced, with a musical depth and clarity that comes through with every note. It’s all down to how they chose the componentry inside – nothing was picked on price, specs or measured performance. They listened carefully and created a system with components that simply sounded the best. The end result is a power amplifier that truly brings an original recording to life like no other.
Just 14 Components in the Signal Path
Although minimal in its exterior design, Edge W has some complex audio engineering inside. To remove the barriers between you and your music, Cambridge Audio's engineers have worked hard to minimise the number of components in the signal path. As a result, Edge W delivers a more faithful reproduction of the original recording; an impressively detailed three-dimensional sound, with striking staging and focus.
More Musical Detail
Cambridge Audio pioneered the use of toroidal transformers in amplifiers, which led to improved performance. In Edge they take this one step further, using opposing symmetry twin toroidal transformers. This cancels out electromagnetic interference whilst offering outstanding power and maintaining consistent tonality, no matter how loud it’s played.
Effortless Power Without Distortion
Using standard Class A amplifier technology wasn’t going to be efficient enough for Edge W. Instead they've added a bias voltage to a traditional Class AB design, reducing distortion to inaudible levels. This unique configuration also produces less heat and makes the whole system much more effective.
Technical Specifications
Perfect Partners
Edge systems are designed to work in perfect synchronisation. Match the Edge W with CA's most versatile Preamplifier Network player, Edge NQ, to create a hi-fi system with a sound, and a look, unlike anything else.
CONTINUOUS POWER OUTPUT
100W RMS into 8 Ohms; 200W RMS into 4 Ohms
THD (UNWEIGHTED)
<0.002% 1kHz at rated power (8 Ohms); <0.02% 20Hz – 20kHz at rated power (8 Ohms)
FREQUENCY RESPONSE
<3Hz – >80kHz +/-1dB
S/N RATIO (REF 1W INTO 8 OHM)
>93 dB
CROSSTALK @ 1KHZ
< -100dB
S/N RATIO (REF FULL POWER)
>113 dB
INPUT SENSITIVITY
Input A1-A2 (unbalanced) 1.09V RMS
INPUT IMPEDANCES
Input A3 (balanced) 47k Ohm; Input A1-A2 (unbalanced) 47k Ohm
INPUTS
Balanced, Unbalanced
OUTPUTS
Speakers, Loop out
MAX POWER CONSUMPTION
1000W
STANDBY POWER CONSUMPTION
<0.5W
DIMENSIONS
150 x 460 x 405mm (5.9 x 18.1 x 15.9")
WEIGHT
23.6kg (51.9lbs)
IN THE BOX
- Edge W Power Amplifier
- 1.5M Power Lead
- Edge Link Cable
- Edge W User Manual
*This information has been obtained from Manufacturers website. We advise that Features & Specifications are subject change from Manufacturer without notice.
