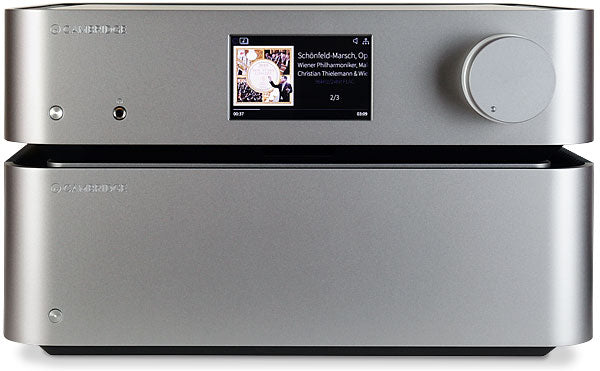

Cambridge Audio Edge NQ Preamplifier with Edge W Power Amp(open box)
with Network Player and Edge W Power Amp
With a revolutionary preamp circuit board that reduces interference and an incredibly clean signal path, Edge NQ plays your favourite music with astonishing depth. Stream, plug-in and play to enjoy every note in perfect clarity
Edge NQ lets you enjoy music from any source. As well as digital coaxial, HDMI, USB, and S/PDIF connections, there’s also Chromecast built-in, Spotify Connect, TIDAL, Qobuz, AirPlay, Bluetooth aptX HD, Internet Radio, and UPnP Playback. Roon Ready certification enhances your browsing experience. Wherever songs are played from, Edge NQ stays true to the character of every instrument and uncovers a musicality you’ve never heard before.
With a wealth of connections, including digital coaxial, ARC (Audio Return Channel), USB, and S/PDIF, our engineers have ensured that all of your digital content can be enjoyed at up to 24-bit/384 kHz and DSD 256. Edge NQ offers an incredibly revealing sound that has detailed tone, rhythmic drive, and taut bass.
Edge NQ was designed with a unique PCB. Our engineers replaced conventional capacitors with a DC-coupled topology and also added a solid-state volume control. The end result is a clean signal path that’s perfectly balanced at any volume.
Edge NQ boasts the very latest version of our award-winning streaming module. Designed in-house, right here in the UK, it features a new, faster chipset and support for both 4-bit/192 kHz and DSD128 files. The addition of Spotify Connect, TIDAL, Qobuz, AirPlay, Bluetooth aptX HD, and Internet radio means you can enjoy your music whatever the source. Roon Ready certification enhances your browsing experience.
Thanks to Chromecast Built-in, hundreds of music services, including Sirius XM & SoundCloud, can be enjoyed on the Edge NQ. Just tap the cast button in your favourite app to stream music from your smartphone, tablet, or laptop in stunning high-definition sound, up to 24 bit/96 kHz.
If you wish to connect the Edge NQ to an integrated amplifier rather than a power amplifier, the streaming functionality can be used independently of the preamplifier. The preamplifier can be disabled via the dedicated Edge app for iOS and Android.

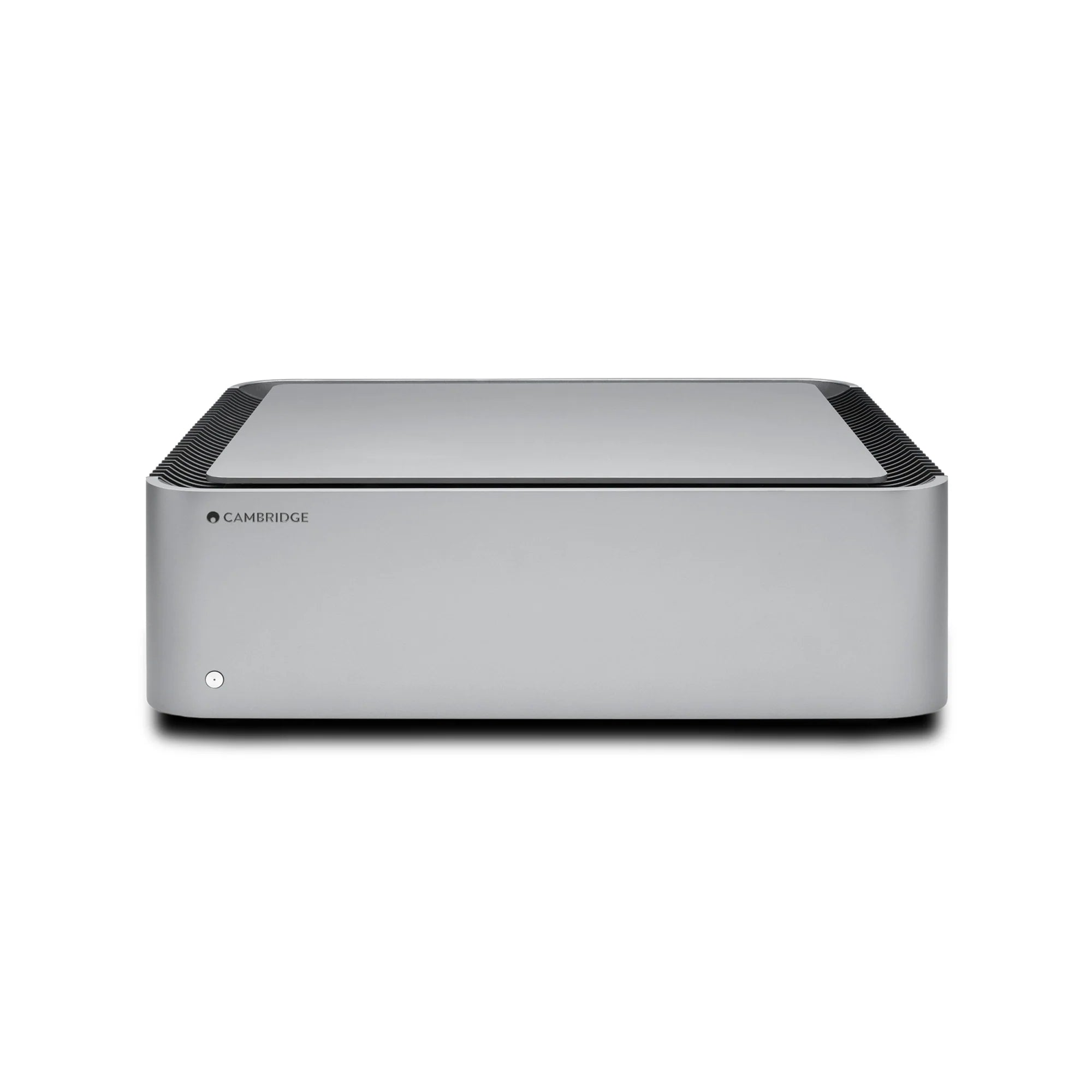

Edge systems are designed to work in perfect synchronisation. Match the Edge NQ with our highest-performing power amplifier, Edge W, to create a hi-fi system with a sound and a look unlike anything else.
For all its power, Edge W is remarkably detailed. The sound is finely balanced, with a musical depth and clarity that comes through with every note. It’s all down to how we chose the componentry inside—nothing was picked on price, specs, or measured performance. We listened carefully and created our system with components that simply sounded the best. The end result is a power amplifier that truly brings an original recording to life like no other.
D/A CONVERTER
THD < 0.0008%, 20-20, 24-bit, Vrms output
THD ANALOG SOURCES
<0.0008%, 20 Hz–20 kHz, Vrms output
FREQUENCY RESPONSE
20Hz-20kHz +/- 0.1dB
S/N RATIO (REF 1V OUTPUT)
>103 dB
CROSSTALK AT 1KHZ
< -100dB
MAX PREAMP OUTPUT
6Vrms single-ended or 6Vrms + 6Vrms balanced
FIXED LINE-OUT MODE
Yes. The preamplifier can be disabled via the dedicated Edge app for iOS and Android. Within the app, simply turn off ‘preamplifier mode’ in the settings to run a line out via XLR or RCA to an integrated amplifier.
USB AUDIO INPUT
USB Audio Class 2.0 supporting up to 32-bit 384 kHz PCM, or up to DSD256
USB DRIVE INPUT
1 x USB 2.0 current limited to 1A, FAT32 / NTFS / HFS / HFS+
BLUETOOTH
4.1 (Smart/BLE enabled) A2DP/AVRCP supporting SBC, AAC, aptX and aptX HD
UPNP CONNECTIVITY
Yes - Accessible via supported app
CHROMECAST BUILT-IN
Yes
ROON READY
Yes (Requires a Roon subscription)
TOSLINK INPUT
16/24-bit 32-96 kHz
COAX S/PDIF INPUT
16/24-bit 32-192 kHz
WI-FI
IEEE 802.11 b/g or n (2.4 ), Encryption WEP, WPA, WPA2
ETHERNET
IEEE 802.3, Base-T or 100Base-T
MAXIMUM POWER CONSUMPTION
100W
STANDBY POWER CONSUMPTION
<0.5W
DIMENSIONS
120 x 460 x 405mm (4.7 x 18.1 x 15.9”)
WEIGHT
10.2 kg (22.4 )
CHROMECAST BUILT-IN
Hi-res wireless connectivity that's compatible with hundreds of Android and iOS apps. Chromecast built-in is a trademark of Google LLC
*This information has been obtained from the manufacturer's website. We advise that features and specifications are subject to change from without notice.
