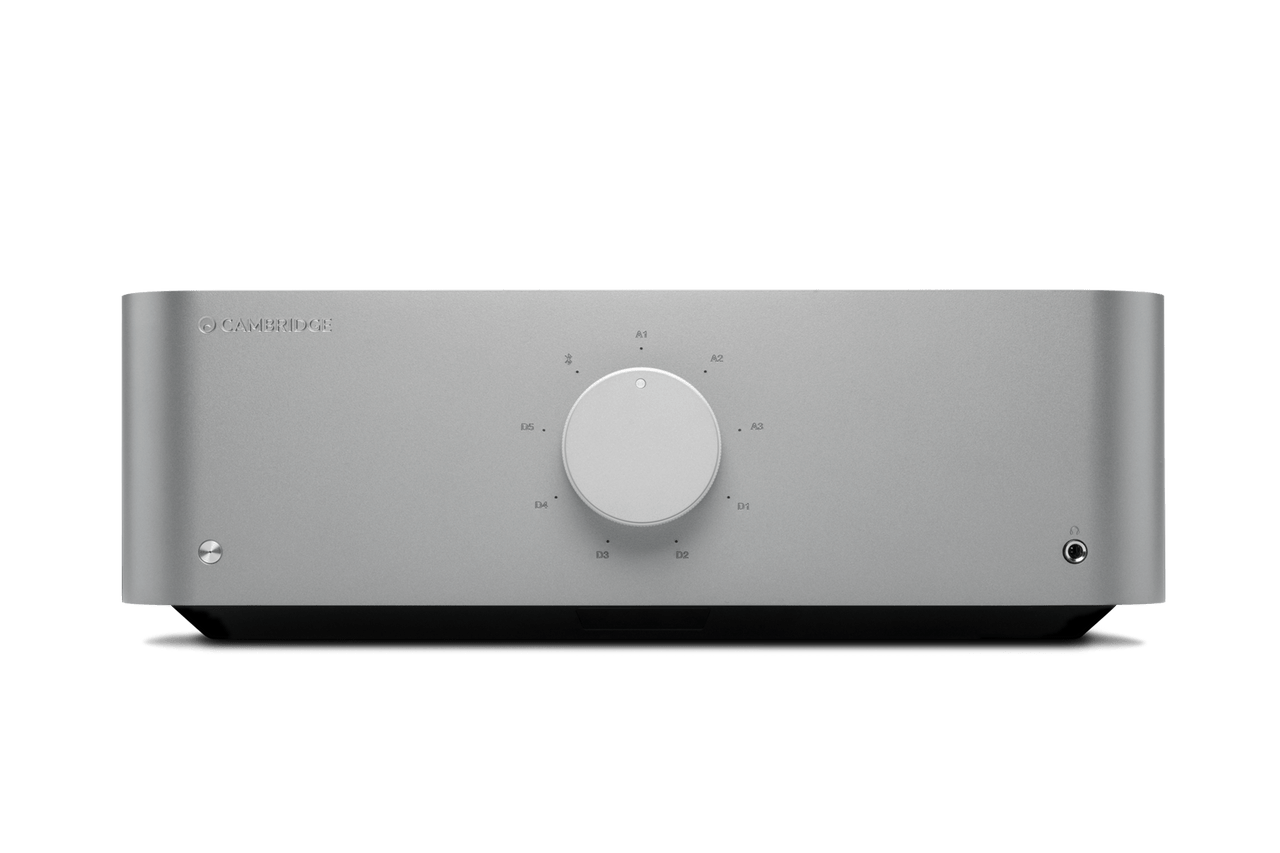

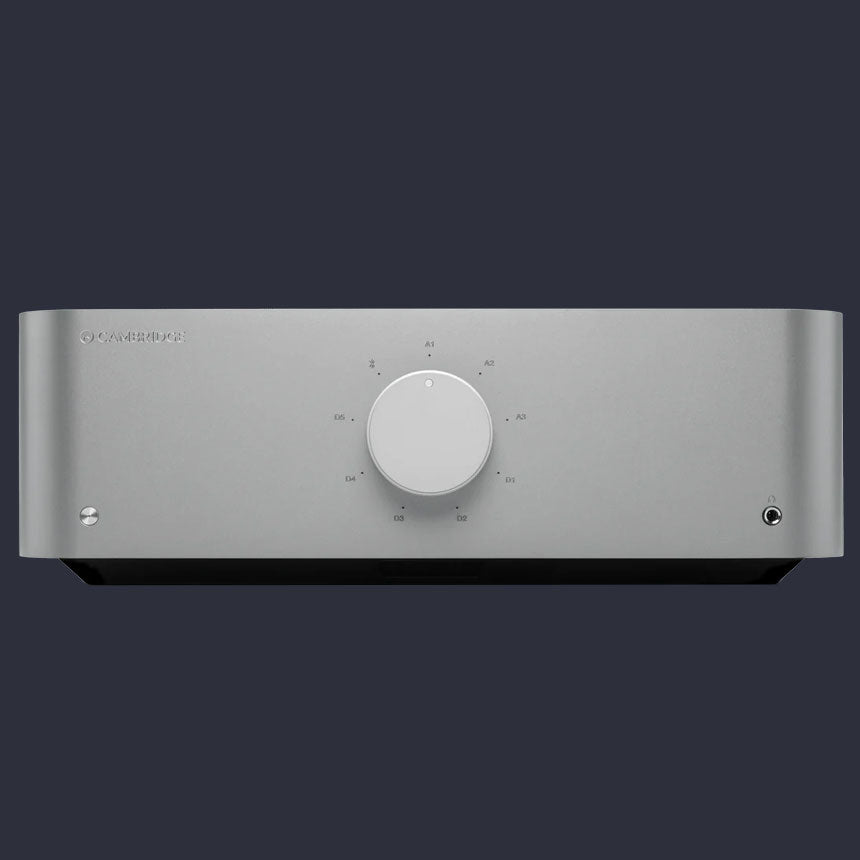

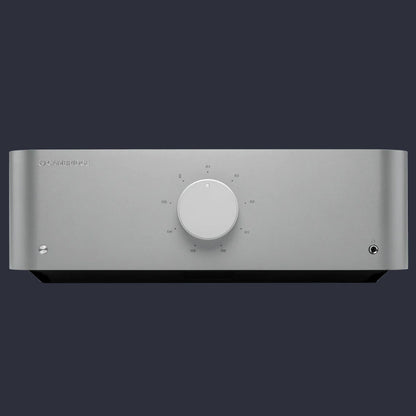

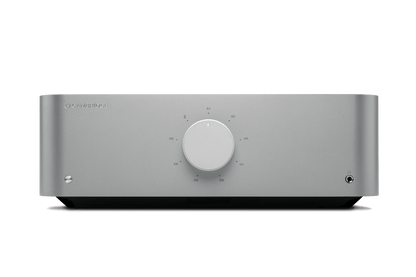

Cambridge Audio Edge A Integrated Amplifier

Cambridge Audio Edge A Integrated Amplifier

Regular price $8,695.00 AUD
Regular price Sale price $8,695.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • AFTER PAY
  • ZIP PAY
  • LAY BUY
  • 755 NICHOLSON ST CARLTON NORTH
  • Full Aussie Manufact. Warranty
  • Free Shipping over $500

Cambridge Audio Edge A Integrated Amplifier

Their Most Detailed Integrated Amplifier yet

Edge A is made to celebrate musicality. Riffs, phrases, percussive rolls – take in every detail of your music thanks to its dynamic setup. Effortlessly powerful, but with incredible depth, the overall sound is breath-taking – like you’re sat in the recording booth with the musicians.

Edge A is designed to bring musical detail to life. It delivers a finely balanced sound with a depth and clarity that come through with every note. We developed the system by ear, testing every component and only choosing those that blew us away. The end result is a ground-breaking arrangement that produces a much cleaner signal path and lets your music breathe. Edge A perfectly delivers our classic British sound – nothing added, nothing taken away.

More Musical Detail

Cambridge Audio pioneered the use of toroidal transformers in amplifiers, which led to improved performance. In Edge they take this one step further, using opposing symmetry twin toroidal transformers. This cancels out electromagnetic interference whilst offering outstanding power and maintaining consistent tonality, no matter how loud it’s played.

Effortless Power Without Distortion

Using standard Class A amplifier technology wasn’t going to be efficient enough for Edge A. Instead they added a bias voltage to a traditional Class AB design, reducing distortion to inaudible levels. This unique configuration also produces less heat and makes the whole system much more effective.

Hi-Res Bluetooth

Pair any Bluetooth device to your Edge A to easily stream your music. With aptX HD support, you can play your audio at up to 24-bit/48kHz quality for an incredibly rich listening experience.

Sonic Balance

Edge A was designed with a unique PCB. Our engineers replaced conventional capacitors with a DC coupled topology and also added a solid-state volume control. The end result is a clean signal path that’s perfectly balanced at any volume.

Technical Specifications

CONTINUOUS POWER OUTPUT
100W RMS into 8 Ohms; 200W RMS into 4 Ohms

THD (UNWEIGHTED)
<0.002% 1kHz at rated power (8 Ohms); <0.02% 20Hz – 20kHz at rated power (8 Ohms)

FREQUENCY RESPONSE
<3Hz – >80kHz +/-1dB

S/N RATIO (REF FULL POWER)
>103 dB

CROSSTALK @ 1KHZ
< -100dB

INPUT SENSITIVITY
Input A1-A2 (unbalanced) 380mV RMS

INPUT IMPEDANCES
Input A3 (balanced) 47k Ohm; Input A1-A2 (unbalanced) 47k Ohm

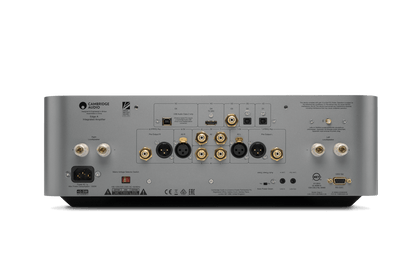

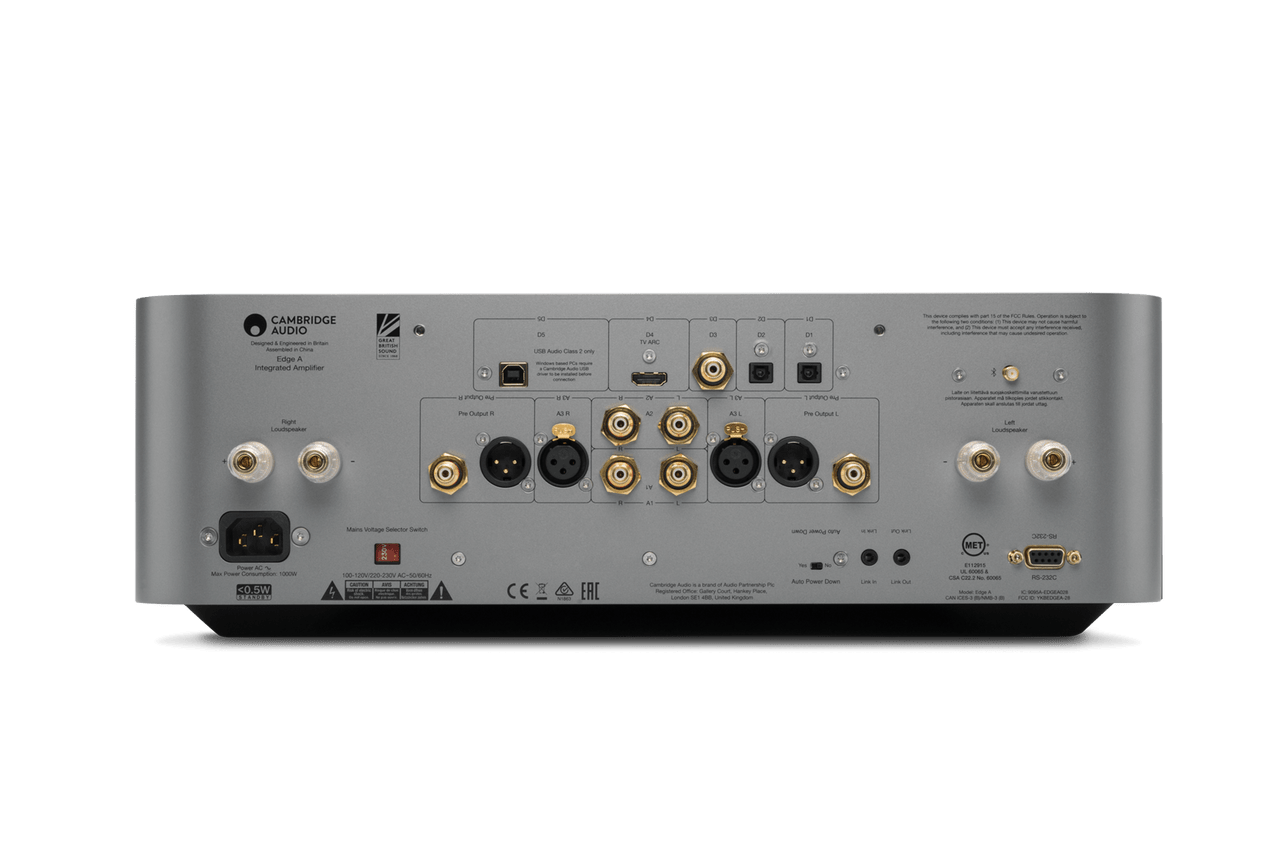

INPUTS
Balanced, Coax S/PDIF, TOSLINK, USB Audio, Unbalanced, Bluetooth, Audio Return Channel (ARC)

OUTPUTS
Speakers, Preamplifier, Headphones (impedance of between 12 and 600 ohms are recommended)

USB AUDIO INPUT
USB Audio Class 2.0 supporting up to 32-bit 384kHz PCM, or up to DSD256

BLUETOOTH
4.1 (Smart/BLE enabled) A2DP/AVRCP supporting formats up to aptX HD

TOSLINK INPUT
16/24 bits, 32-96kHz

COAX S/PDIF INPUT
16/24 bits, 32-192kHz

MAX POWER CONSUMPTION
1000W

STANDBY POWER CONSUMPTION
<0.5W

DIMENSIONS
150 x 460 x 405mm (5.9 x 18.1 x 15.9")

WEIGHT
24.4kg (53.7lbs)

IN THE BOX

  • Edge A Integrated Amplifier
  • 1.5M Power Lead
  • Edge Remote Control
  • 3 x AAA Batteries
  • Bluetooth Antenna
  • Edge Link Cable
  • Edge A User Manual
