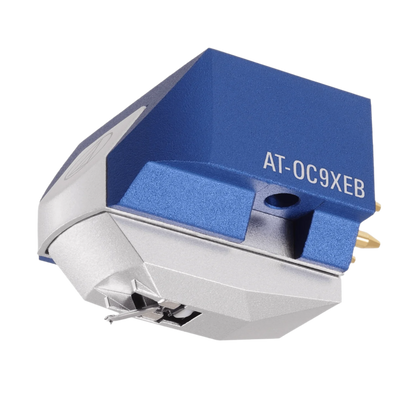

Audio Technica AT-OC9XEB Dual Moving Coil Phono Cartridge

Introducing the AT-OC9XEB

Dual Moving Coil Phono Cartridge

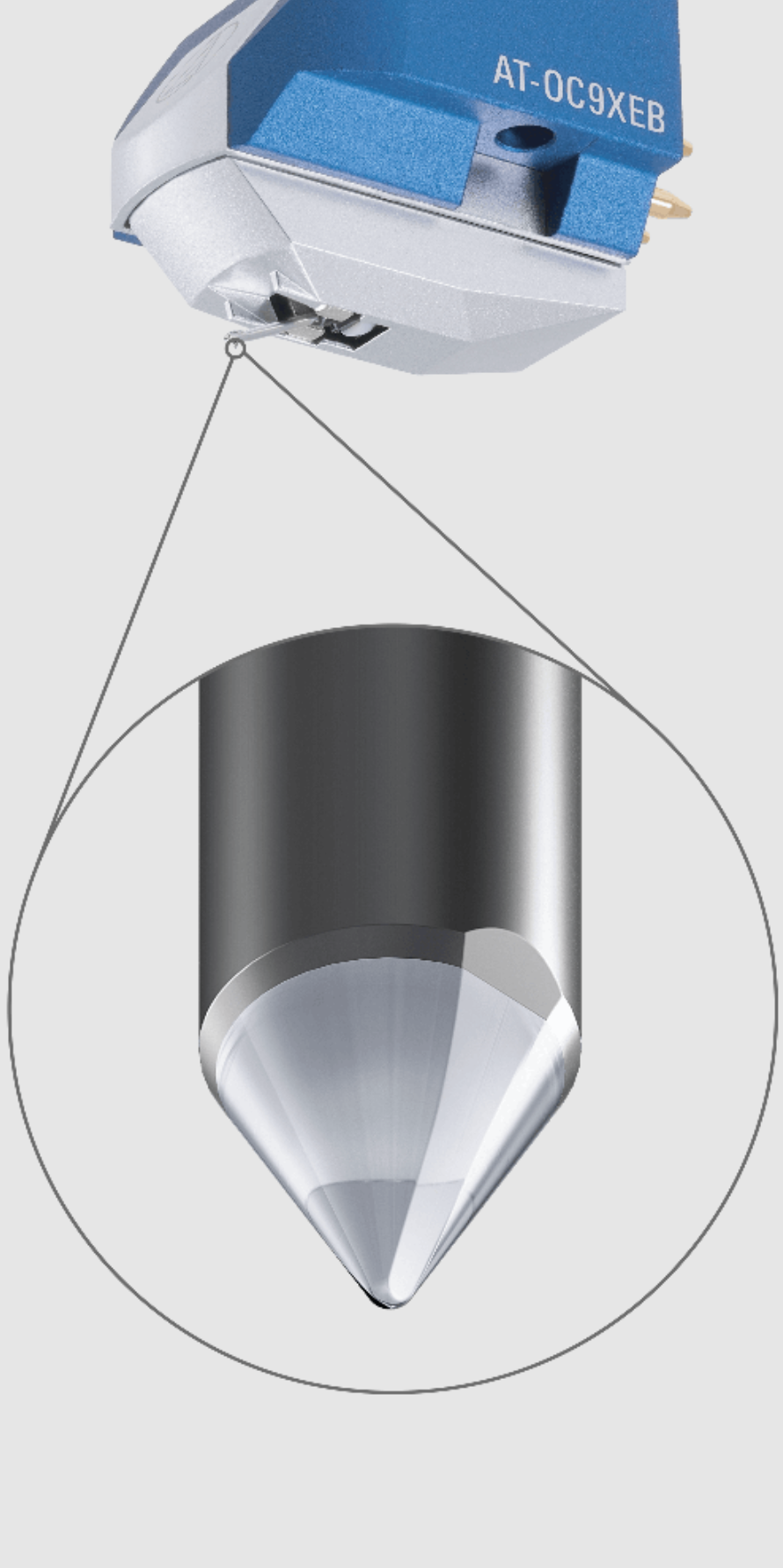

The AT-OC9XEB is a premium moving coil phono cartridge with a 0.3 x 0.7 mil Elliptical Bonded stylus.

The OC9X range features a new Dual Moving Coil structure, which enables the audio information in the record grooves to be separated to the left and right channels with pinpoint accuracy.

This improved channel separation results in a more precise stereo image and wider frequency response. The moving coil wires in all OC9X Series cartridges are made from PCOCC (Pure Copper by Ohno Continuous Casting), for optimum signal purity.

The AT-OC9XEB’s transducer engine is mounted onto a rigid aluminium body to help reduce unwanted internal vibrations and maintain sonic clarity. The cartridge bodies are pre-threaded, enabling them to be easily mounted to a headshell or tonearm with just two screws (no mounting nuts for the screws are required). Each OC9X Series cartridge is supplied with mounting hardware, a stylus brush and other accessories.

Product Features

• 0.3 x 0.7 mil Elliptical Bonded stylus
•  Made from PCOCC (Pure Copper by Ohno Continuous for optimum signal purity
•  Aluminium body and cantilever to help reduce unwanted vibrations and maintain sonic clarity
•  Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required

Technical Specifications

Type
Dual Moving Coil

Body Material
Aluminium

Mounting Feature
Threaded inserts

Frequency Response
20 to 30,000 Hz

Channel Separation
25 dB (1 kHz)

Output Channel Balance
1.5 dB (1 kHz)

Output Voltage
0.32 mV (at 1 kHz, 5 cm/sec)

Vertical Tracking Angle
20 degrees

Vertical Tracking Force Range
1.8 to 2.2 g (standard 2.0 g)

Stylus Shape
Elliptical Bonded

Stylus Curvature Radius
0.3 x 0.7 mil

Stylus Construction
Bonded round shank

Cantilever
Aluminium pipe

Static Compliance
20 x 10 ^(–6) cm / dyne

Dynamic Compliance
9 x 10 ^(–6) cm / dyne (100 Hz)

Wire Used for Coil
PCOCC

Terminal Pins
Brass

Recommended Load Impedance
Min 100 Ohm

Coil Impedance
12 Ohm

DC Resistance
12 uH (1kHz)

Cartridge Weight
7.6 g

Dimensions
17.3 (H) x 16.8 (W) x 25.7 (L) mm

Mounting
1/2” centres

Accessories Included

• 1 non-magnetic screw driver
• 1 brush; 2 washers
• 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
• 1 plastic protector
