AMC XIA 30 Integrated Stereo Amplifier

AMC XIA 30 Integrated Stereo Amplifier

Regular price $399.00 AUD
Regular price $699.00 AUD Sale price $399.00 AUD
Sale Call For Availability
Taxes included. Shipping calculated at checkout.
  • Full Aussie Manufact. Warranty
  • Free Shipping over $500
Color: Silver

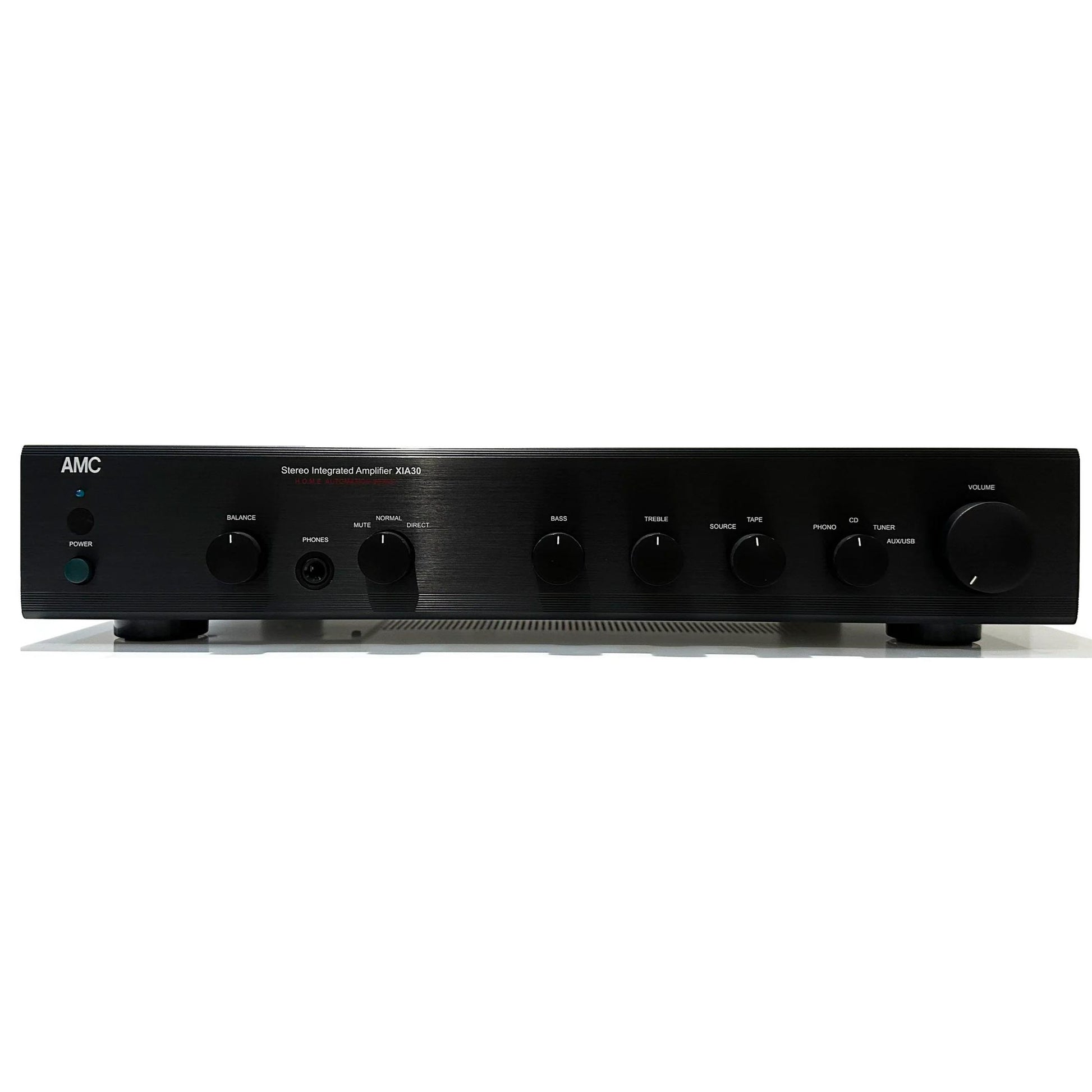

XIA 30 Integrated Stereo Amplifier

Punching well above its weight, both in terms of output and price point, the AMC XIA30 is where good amplifiers start.  It's high-current design is mega impressive.

Phono Stage
The XIA30 features a unique phono stage design, utilising two top-grade op-amps per channel for unparalleled THD, TIM, and noise reduction, and providing switchable Moving Magnet or Moving Coil cartridge options.

Tone Controls
The XIA30 incorporates a specially designed passive tone control circuit to provide natural sound quality. The tone control stage can be completely bypassed with the Direct switch to give natural sound quality.

High-quality components
The XIA30 is equipped with audiophile-grade components for physiological precision and powerful low-volume sound reproduction. Tone control and phono responses are precise and dynamic.

High Current
The XIA30's 30 amp high peak output devices and optimised power supply design provide the current delivery needed to deliver dynamic audio to passive speakers. Its specially designed output stage with perfect virtual image topology further ensures direct, high-quality connection to loudspeakers without reliance on relays, so it is able to drive modern music with dynamic accuracy.

Toroidal Transformer
No amplifier is complete without a competent power supply section and a robust toroidal transformer able to provide the continuous power needs of the amplifier circuit. The universal power transformer in the XIA30 has international safety compliance and exhibits exceptionally low RF noise to help give the XIA30 the ultimate in crystal-clear sound.

Gold Connectors
Gold-plated RCA connectors and binding post-speaker terminals provide reliable sound transmission to and from the AMC XIA 30 Integrated Stereo Amplifier.

About AMC

AMC is actually responsible for some of the very best brands on the market today. In fact, AMC’s failure rate is so low that most companies would only dream of it.

AMC is a state-of-the art design and engineering company as well as a manufacturer of high-end Hi-Fi components. Combined with their design philosophy focusing on 25 years of reliability and a state-of-the art manufacturing facility, as far as value for money is concerned, you get bang for buck and then some.

Peter Bath and Malcolm Blockley, both previously part of NAD, Acoustic Research, and Proton, have used the cost-effectiveness of AMC's "common-platform" product design and production processes to create a product range that fulfils all of an audiophile's expectations at an attractive price point.

Features and Specifications

  • Remote-controlled (sold separately) All-Analog Stereo Integrated Amplifier
  • Rated Power into 8/4 Ohm (Both Channels Driven): 30 Watts
  • Rated T.H.D. (Total Harmonic Distortion) 20Hz-20kHz: 0.05%
  • Input Sensitivity for 1W/Rated Power into 8 Ohms
    • High-Level Inputs: 23 mV/150 mV
    • Phono Input MM: 0.5mV/2.7mV
    • Phono Input MC: 0.05 mV/0.27 mV
  • Input Impedance
    • High-Level Inputs: 20K ohms
    • Phono Input MM/MC: 47K ohms/100pF
  • Frequency Response
    • Tone Bypass: 20-20kHz: +/-0.5 dB
    • Normal: 20-20kHz: +/-1.0 dB
    • High Level Inputs: -3 dB: 10 Hz/60 kHz
  • Signal-to-noise ratio (1W/8 Ohms)
    • High-Level Inputs: A WTD: of 88 dB
    • Phono Input A WTD: 80 dB
    • Separation 20–20 kHz > 65 dB
  • Tone Control Range
    • Bass at 100Hz: +/- 10 dB
    • Treble at 10kHz: -8/+11 dB
    • Overall Feedback: 26/29 dB

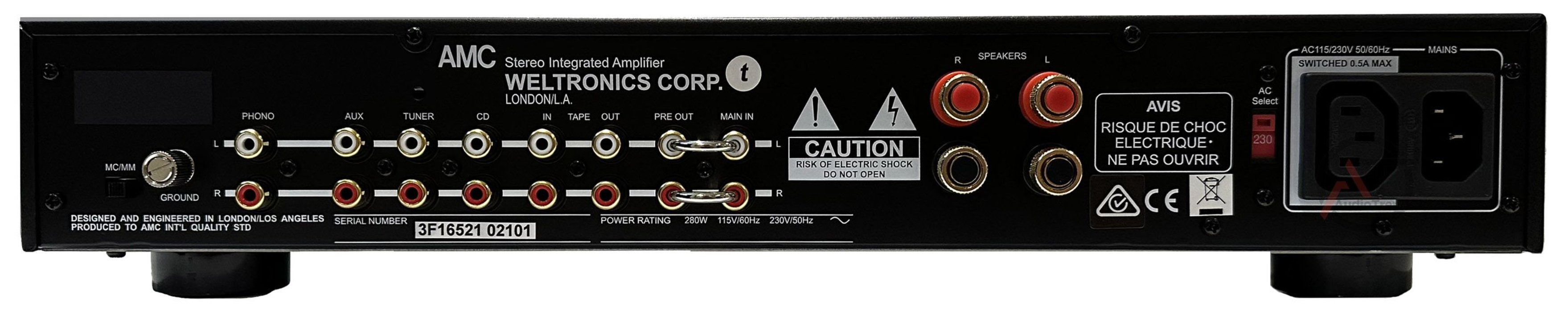

  • Three Line-Level Inputs
  • Switchable Moving Magnet/Moving Coil Phono Input
  • ¼” (6.35mm) Headphone Output
  • Speaker Binding Posts, which can accept Banana Plugs, Spades or bar Wire
  • Tone Controls with Direct Switch to bypass them
  • Tape Monitor Circuit
  • Pre-Out/Power In
  • Balance Control
  • Front Panel Mute
  • Comprehensive Remote Control  (sold separately)
  • Removable Power Cable: Upgrade to an IsoTek Power Cable for better performance
  • Available Finishes: Black or Silver
  • Dimensions (WxHxD): 430 x 82 x 288mm
  • Weight : 6.8kg
  • Manufacturer’s Warranty: 3 Years
