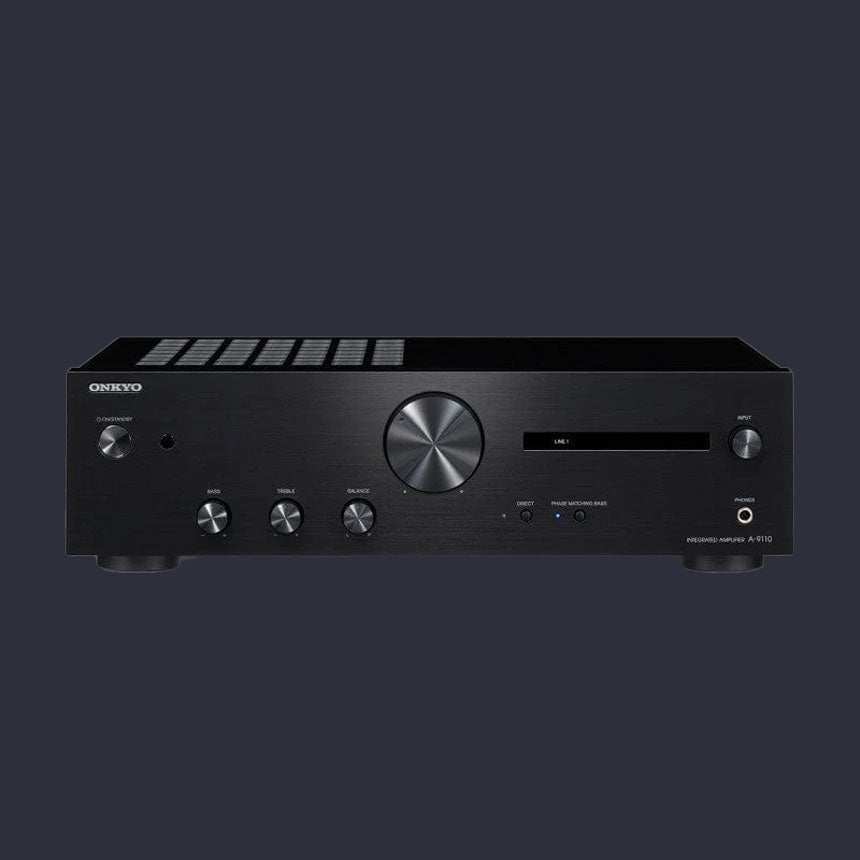

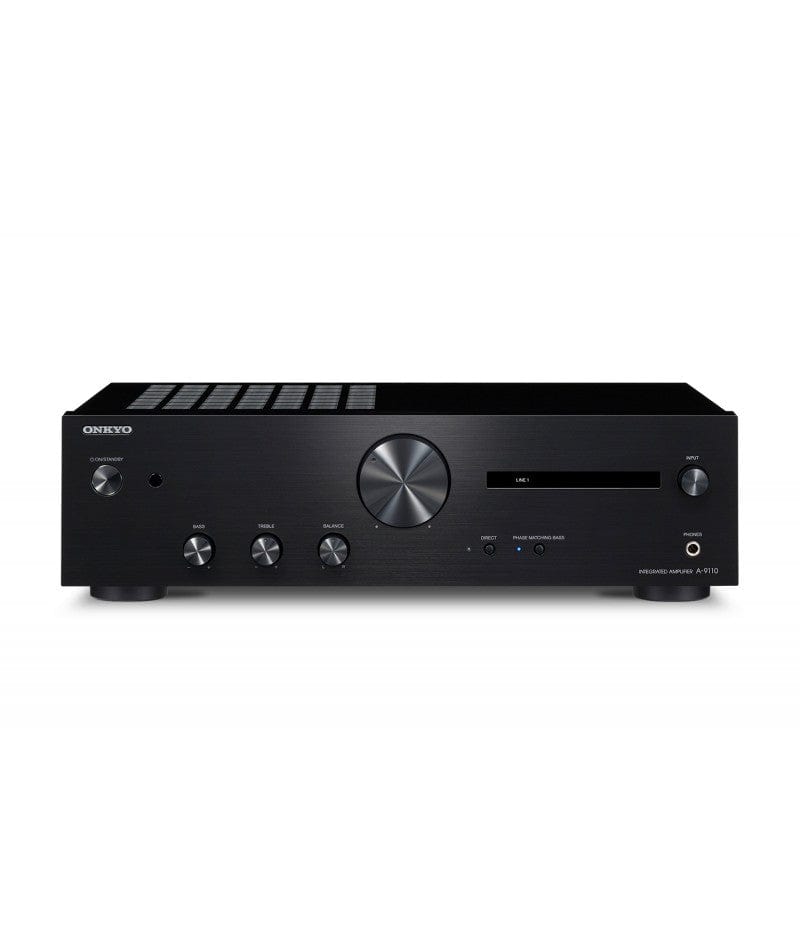

Onkyo A-9110 Integrated Amplifier

Onkyo A-9110 Integrated Amplifier

Stable high-current power with wide-range amplifiers

Dynamic changes in music cause impedance to fluctuate. If power can't be delivered when impedance drops, sound quality suffers. Onkyo's solution is WRAT, specifically its high-output EI transformer, huge custom-made main audio capacitors, and carefully selected high-quality parts.

High-current stability controls the speaker drivers for accurate and assured reproduction of dynamic musical passages. Further, the A-9110 features Onkyo's time-proven low-negative-feedback amplifier topology that distinguishes the timbral warmth, fullness, and vibrancy of the recording. This circuitry captures a wide frequency spectrum with uncommonly low distortion.

Sounds clearer at low volumes

When playing music at a low volume, the signal normally drops close to the component's noise floor. The signal picks up noise, which is amplified, and the result is a muffled sound. To avoid this, the A-9110 features Optimum Gain Volume Circuitry, a volume circuit that requires less than half the usual amount of attenuation.

The signal never approaches the noise floor, so you can enjoy the clearest sound at a low volume.

Phase Matching Bass Boost enriches sound at low volume

Most pre-main amps have a loudness button designed to boost low-mid frequency sound. However, conventional designs are prone to phase-shift, which degrades the clarity of the vocal frequency band. Onkyo's Phase Matching Bass Boost function eliminates phase-shift between low- and mid-range frequency bands above 300 Hz.

Bass response is enhanced without compromising vocal clarity, and that's something especially useful when playing music at a low volume where bass and high-frequency sounds are more difficult to hear.

Thick and rigid chassis tames resonance

Every hi-fi component generates electromechanical resonance. This translates into signal noise, and that impacts the sound coming out of your speakers. To combat the negative effects of vibration, the A-9110 features a rigid metal chassis that's 1.3 times thicker than the A-9010 at 1/16" (1.6 mm).

Working together with large, wide-spaced insulators, unwanted resonance is virtually eliminated.

Product Features

• Stable high-current power with wide-range amplifiers
• Sounds clearer at low volumes
• Phase Matching Bass Boost enriches sound at low volume
• Thick and rigid chassis tames resonance

Technical Specifications

• Color Black
• Power Amplifier Speaker Channels Stereo
• Frequency Response 10 Hz - 100 kHz
• Watts RMS per Channel (4 Ω) 50 Watts + 50 Watts
• Input Sensitivity 200 mV (Line) | 4 mV (Phono MM) | 0.2 V (Line out)
• Input Impedance 47 kΩ (Line) | 47 kΩ (Phono MM) | 2.3 kΩ (Line out)
• Signal-to-Noise Ratio 103 dB (IHF-A, Line In, Speaker Out) | 78 dB (IHF-A, Phono In, Speaker Out)
• Total Harmonic Distortion (THD) 0.05 %
• Phono Input Yes
• RCA Input 4
• RCA Output 1
• Subwoofer Outputs 1
• Warranty Australian Manufacturer Warranty
• Product Dimension (H×W×D) 129 × 435 × 330 mm
• Product Weight 7 Kg
