Advance Paris X-A220 EVO Mono Power Amplifier (Pair)

Name: Advance Paris X-A220 EVO Mono Power Amplifier (Pair)
Brand: Advance Paris
SKU: ADP-X-A220-EVO-Mono-PA
Price: 5995.0 AUD
Availability: InStock

Advance Paris

$5,995.00 AUD

~~$5,995.00 AUD~~ $5,995.00 AUD

Product variants

Free Pick Up at Vinyl Revival Carlton North — (753-755 Nicholson Street, Carlton North)

Usually ready in 2-4 days —

Free delivery (Conditions may apply) — on orders over $500!

Secure checkout with

Advance Paris X-A220 EVO Mono Power Amplifier (Pair)

$5,995.00 AUD

~~$5,995.00 AUD~~ $5,995.00 AUD

Product variants

X-A220 EVO Mono Power Amplifier (pair)

The new X-A220EVO monophonic power amplifier provides 220W of power. For an ideal hi-fi setup, pair this amplifier with the X-P500 preamplifier.

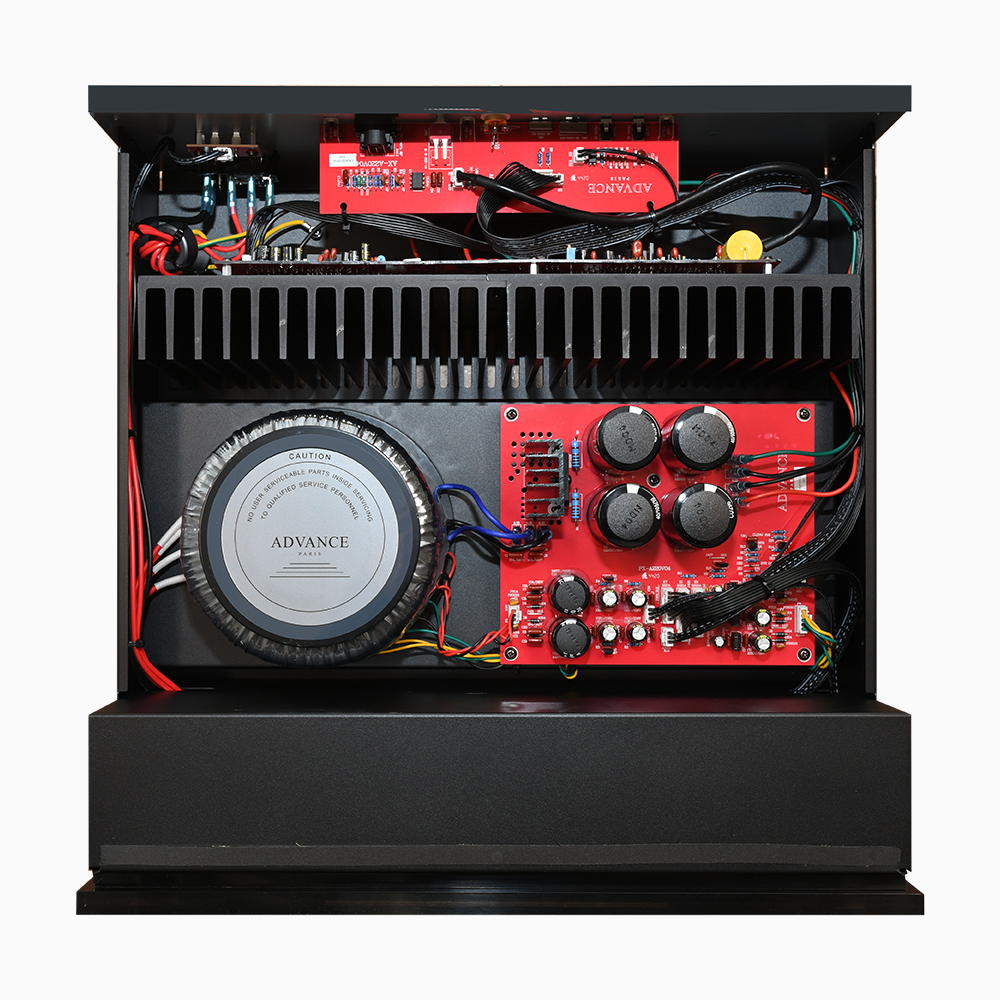

Its combination of technical prowess and audiophile design provides outstanding performance at a competitive price. Featuring steel frames with impeccable finishing and methacrylate fronts to improve aesthetics and ergonomics, the internal layout is both rational and sectioned.

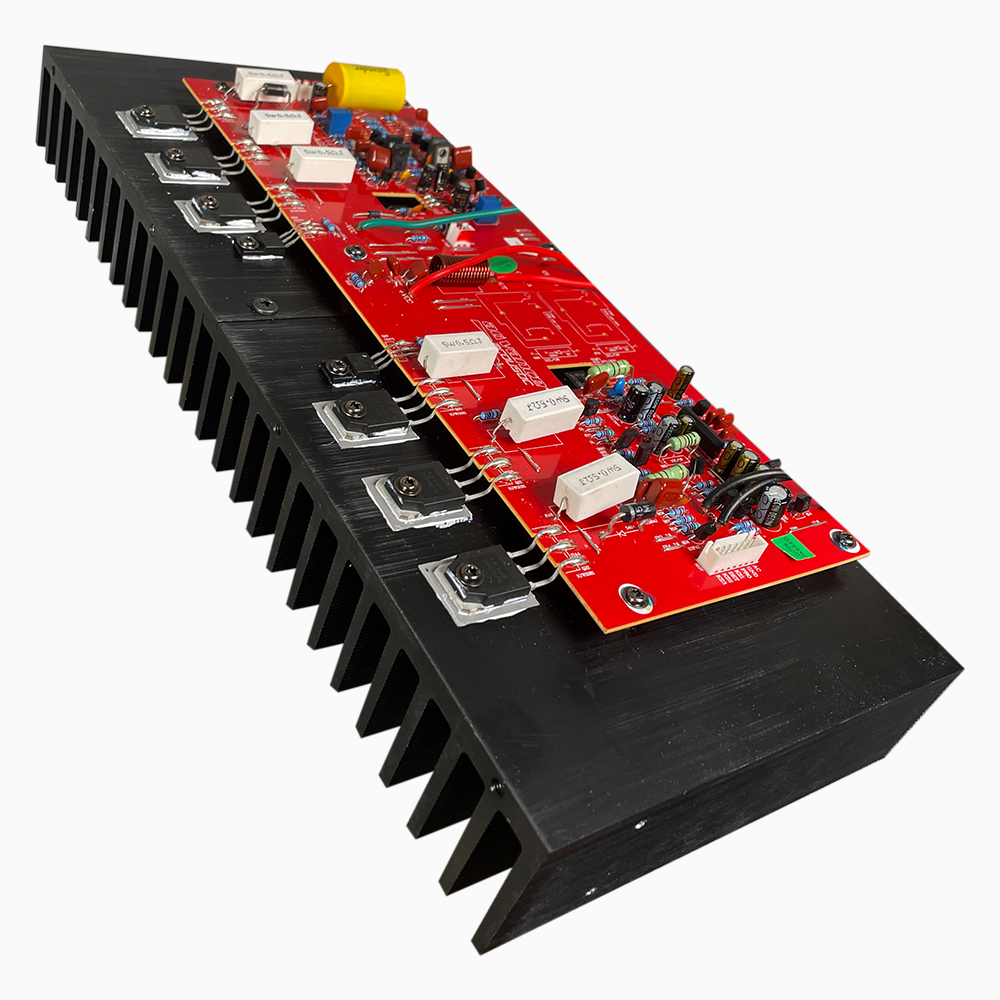

Quality components are mounted on separate PCBs, allowing for efficient partitioning. Its substantial heatsink is responsible for its thickness.

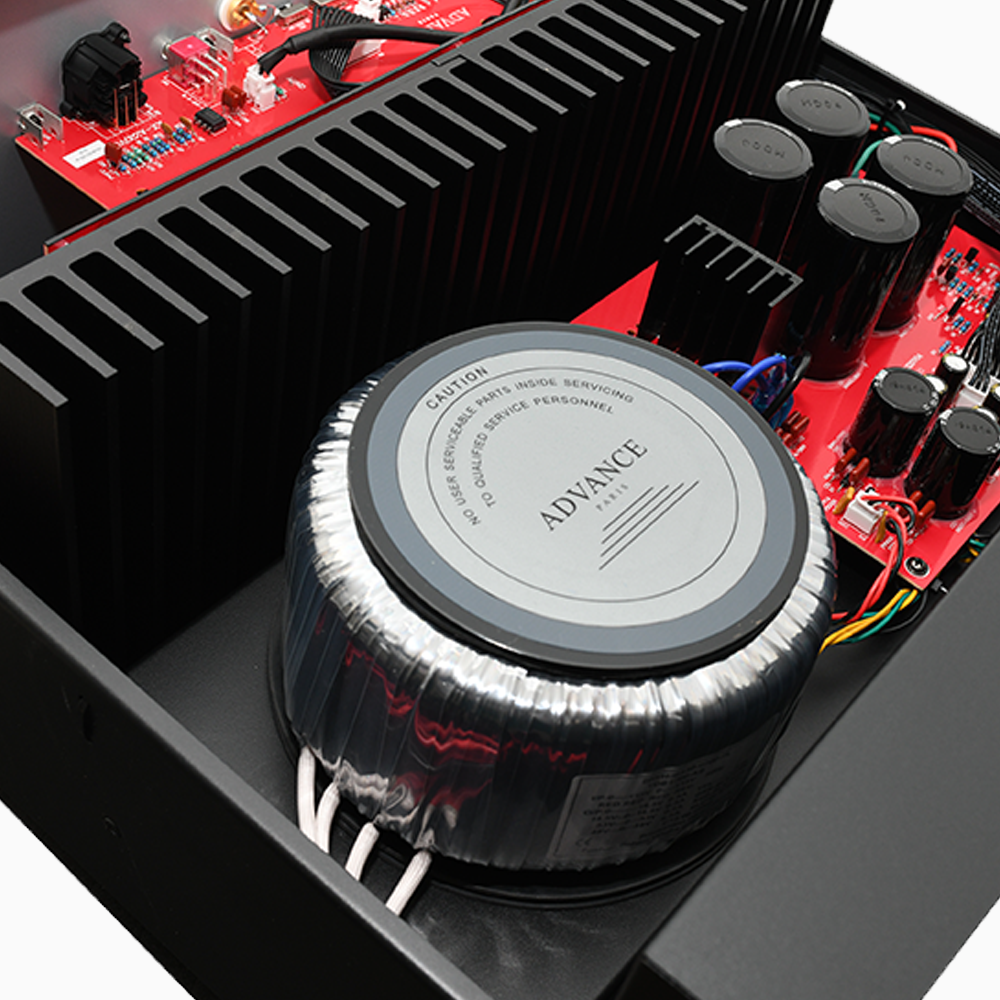

To deliver up to 0302 W/220 ohms in class AB, the amplifier uses a 700 VA toroidal transformer and four 10 µF/000 V capacitors to provide the DC current. An NE80 op-amp offers balanced/unbalanced switching.

For versatility, the X-A8EVO can also operate in two modes: regular class AB and class A for the first few watts.

Technical Specifications

Output power: 8Ω
1 x 220W RMS

Output power 4Ω
1 x 350W RMS

Bandwidth
10 Hz – 80 kHz

Distortion
<0.08%

Signal-to-noise ratio
>100 dB

Channel separation
>80 dB

Impedance – Asymmetric input
32 KΩ

Impedance – Symmetrical input
38 KΩ

Mains voltage
115–230 V

Standby consumption
<0.5 W

Maximum consumption
500 W

Transformer power
700 VA

Transformer
Toroidal

Dimensions (H x W x D)
200 x 430 x 450 mm

Net weight
21 kg

Product type
Power block

VU metre
Yes

*This information has been obtained from the manufacturer's website. We advise that features & specifications are subject to change without notice. E&OE
