ProJect Amp Box S3 Power Amplifier

Micro audiophile stereo power amplifier.  Efficient, audiophile & made in Europe!

The new Amp Box S3 offers one stereo RCA input and delivers powerful and room-filling sound to every loudspeaker. A new PCB concept & sophisticated topology achieves less distortion and a better signal to noise ratio.

ProJect designed this amp to match the sound characteristics of a tube amplifier as closely as possible. Amp Box S3 brings you a rich and musical sound with an analogue touch of warmth into your living room. It is also the perfect solution for your desktop nearfield monitor speakers due to its size and superior spacious sound stage.

• HiFi Amplifier for 10-15 m2 rooms
• Audiophile desktop nearfield monitor amp
• Streamer power amp upgrade
• Multi room power amp solution
• Home cinema power amp upgrade
• In-wall or ceiling speaker amp

The new Amp Box S3 is designed and produced in Europe and is available in a silver finish.

Product Features

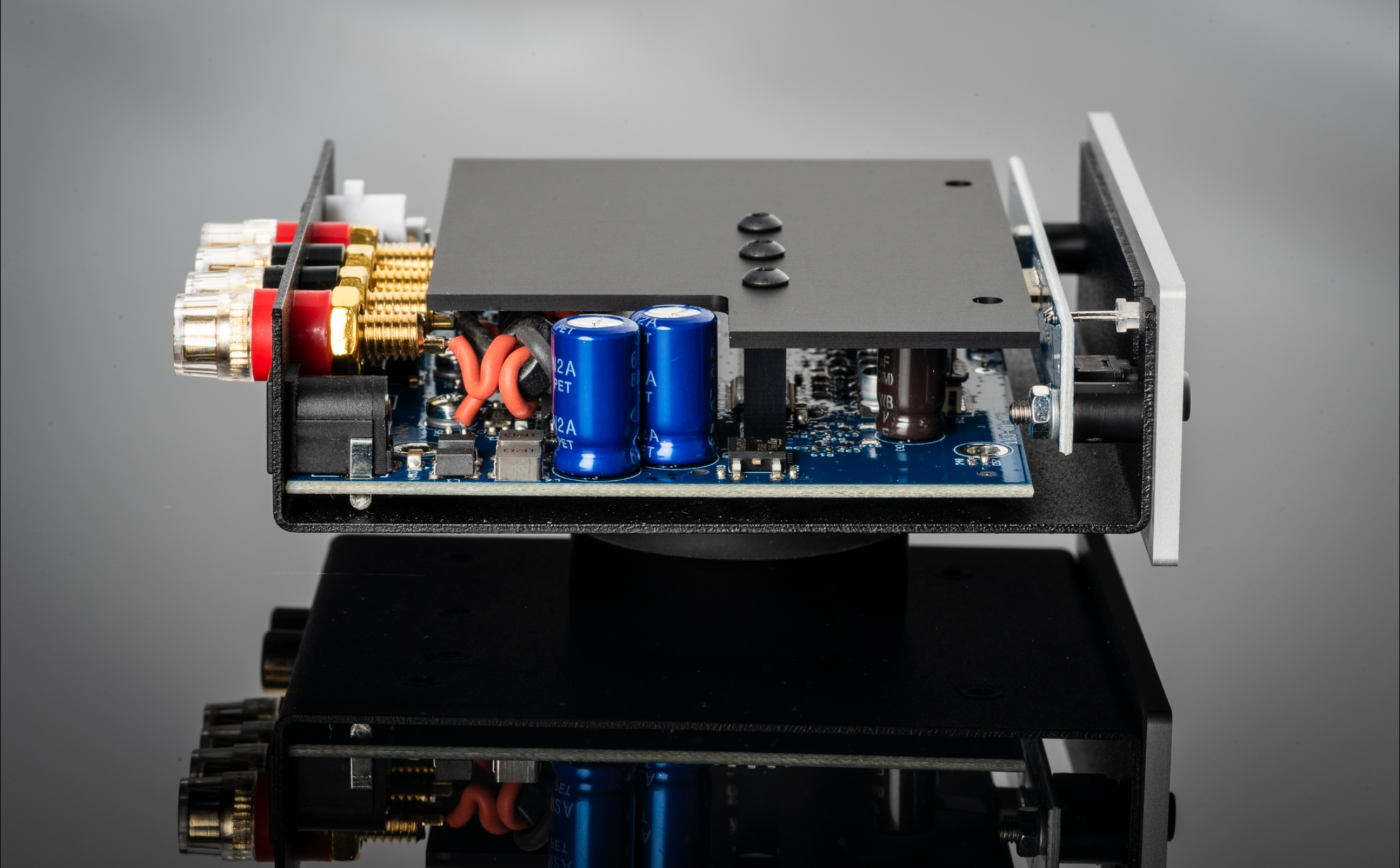

• NEW PCB concept & sophisticated topology
• NEW lower distortion & better SNR
• Ultra compact & audiophile
• Advanced amplifier module
• Metal casing protects against vibration and interference
• Made in Europe

Technical Specifications

Power output	2 x 23 W / 40 W at 8 ohms / 4 ohms
Peak power	2 x 50 W at 4 ohms
Frequency response	20Hz - 20kHz (- 0,7dB / 4 ohms)
Channel separation	> -68 dB @ 20kHz
Signal-to-noise ratio	87dBV (100dBV-‚A‘ weighted)/4ohms
THD	< 0,02% @ 10W / 4 ohms
Gain	31 dB
Input	1 pair RCA sockets
Input impedance	25 kohm
Speaker sockets	4mm Ø Banana, spades. pins or bare wire
Trigger 12V DC	In&Out, 2-pole jack socket Ø 2,5mm
Power supply	20V/3A DC (universal power supply)
Dimensions W x H x D	103 x 36 x 118mm
Weight	385g not including power supply
