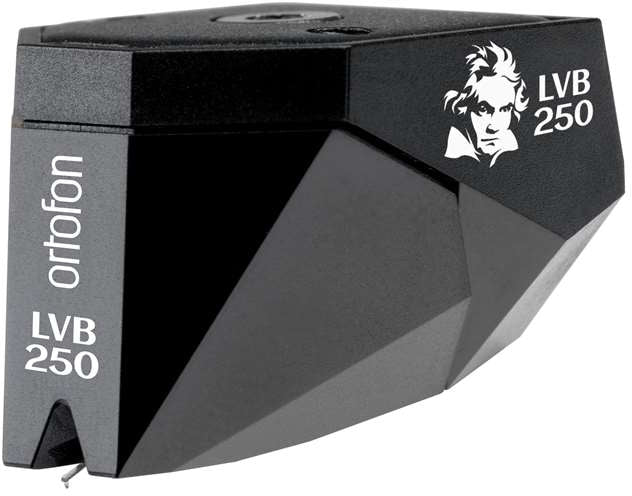

The 2M Black LVB 250 upgrades the great build of the 2M Black with a Nude Shibata diamond on a boron cantilever. The use of an extremely stiff and lightweight Boron cantilever adds remarkable transparency, speed, and responsiveness.
The Nude Shibata stylus’ slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the highest frequencies
Product Features
Stylus lifetime
with proper care we find that up to 1000 hours is possible without degradation of performance.
with proper care we find that up to 1000 hours is possible without degradation of performance.
2M Series styli interchangeability
The 2M Series' engines, coils and magnets configurations are not all the same.
Red and Blue are identical, as are the Bronze and Black and so to are the true mono variants 2M Mono and 2M 78.
2M series styli are interchangeable within the following combinations:
- 2M Red, 2M Blue and 2M Silver
- 2M Bronze, 2M Black and 2M Black LVB 250
- 2M Mono and 2M 78
Technical Specifications
- Output voltage at 1000 Hz, 5cm/sec. - 5 mV
- Channel balance at 1 kHz - < 1 dB
- Channel separation at 1 kHz - > 27 dB
- Channel separation at 15 kHz - 15 dB
- Frequency response - 20-20.000 + 2 / - 1 dB
- Tracking ability at 315Hz at recommended tracking force - 80 µm
- Compliance, dynamic, lateral - 22 µm/mN
- Stylus type - Nude Shibata
- Stylus tip radius - r/R 6/50 µm
- Cantilever material - Boron
- Tracking force range - 1.5-1.7 g (15-17 mN)
- Tracking force, recommended - 1.6 g (16 mN)
- Tracking angle - 20°
- Internal impedance, DC resistance - 1.2 kOhm
- Internal inductance - 630 mH
- Recommended load resistance - 47 kOhm
- Recommended load capacitance - 150-300 pF
- Cartridge colour, body/stylus - Black/Black
- Cartridge weight - 7.2 g
- Replacement stylus unit - 2M Black LVB 250
- Interchangeable styli units - 2M Black and 2M Bronze
